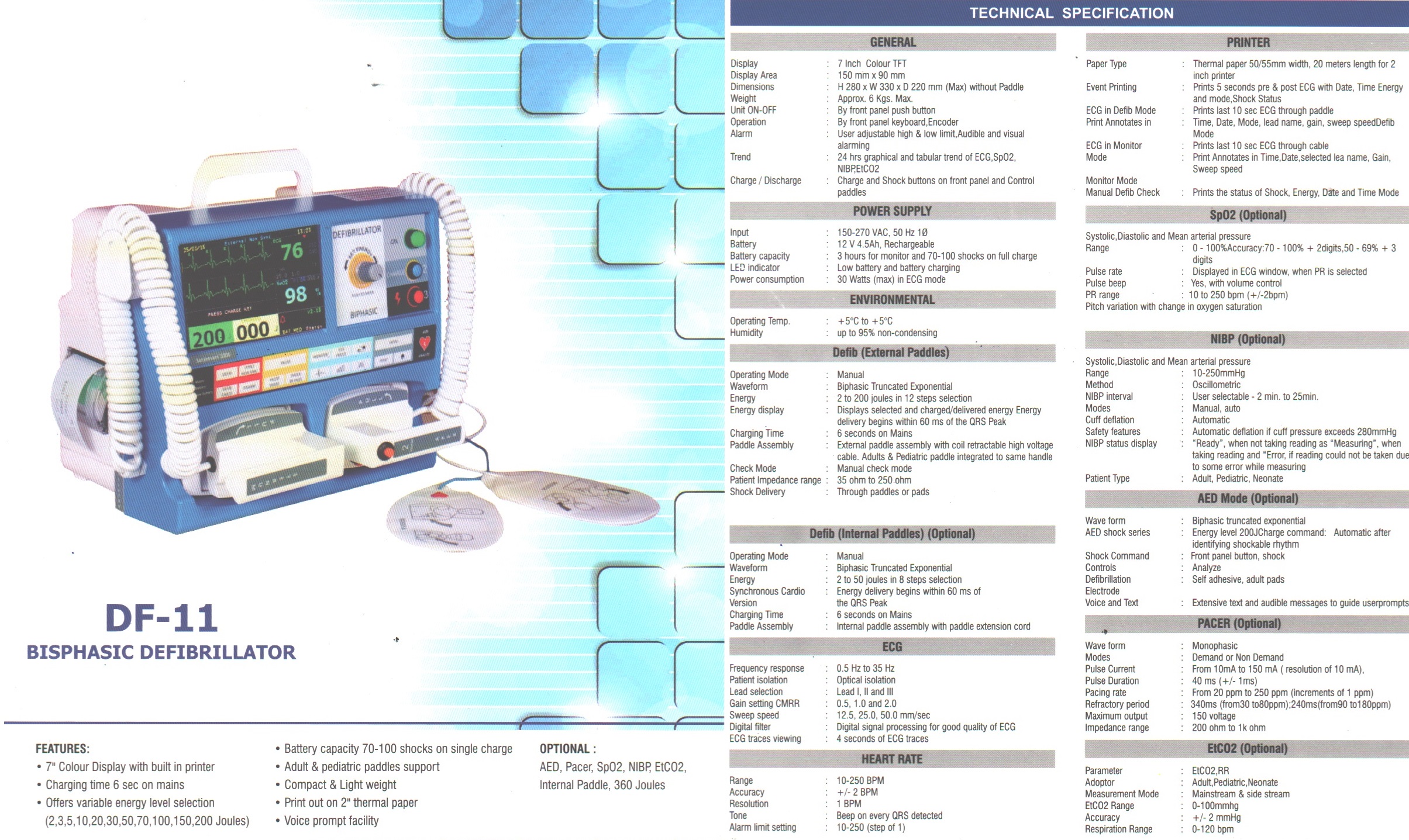

Features:

7″ Colour Display with Built in printer

charging time 6 sec on mains

offers variable energy level selection

(2,3,5,10,20,30,50,70,100,150,200 joules)

Battery capacity  70-100 shocks  on single charge

Adult & pediatric paddles support

compact & light weight

print out on 2″ thermal paper

voice prompt facility

Optional

AED, pacer,spo2, NIBP , ETCO2, INTERNAL PADDLE, 360 JOULES

GENERAL :

DISPLAY                        7 INCH Colour TFT

Display Area                  150 mm x 90 mm

Dimension                      H 280 x w 330 x D 220 mm (max) without paddle

Weight                            Approx. 6 kg max,

Unit ON-OFF                By front panel push button

Operation                       By Front panel keyboard .Encoder

Alarm                              User Adjustable  high & low limit, Audible and visual  alarming.

Trend                               24 HRs graphical and  tabular trend of ECG,SPO2,NIBP,TCo2

Charge/Discharge        charges and shock buttons on front panel and control paddles.

power supply

Input                         150-270 VAC ,50 Hz 10

Battery                      12 v 4,5Ah ,Rechargeable

Battery Capacity       3 hours for monitor and 70-100 shocks on full charge

LED indicator              low battery and battery charging

power Consumption     30 watts (max) in ECG mode.

  Environmental

Operating temp.             +5 c to 5 c

Humidty                           up to 95 %  non-condensing

DEFLB         (External Paddles)

Operating Mode                    Manual

Waveform                              Biphasic Truncated Exponential

Energy                                  2 to 200 joules in 12 steps selection

Energy display                     Display selected and Charged/delivered energy .Energy delivery                                                              begin within 60 mm  of the QRS peak

Charging Time                       6 seconds on mains

paddle Assembly                    External paddle assembly with coil rectangle high voltage                                                                        cable, Adult & pediatric paddle integrated to same handle

Check Mode                            Manual check mode

patient Impedance range    35 ohm to 250 ohm

shock delivery                        through paddles or pads.

ECG

Frequency response         0.5 Hz to 35 Hz

Patient isolation               optical Isolation

Lead selection                   lead I,II,III

Gain setting  CMRR        0.5,1, and 2.0

Sweep speed                     Digital signal processing for good Quality of ECG

ECG Traces Viewing        4 seconds  OF ECG traces

Heart Rate

Range                               10-250 BPM

Accuracy                         +/- 2 BPM

Tone                               Beep on Every QRS detected

Alarm Limit Setting    10-250(step of 1)

EIco2 (optional)

Parameter              EICo2 RR

Adoptor                  Adult ,Pediatric, Neonate

Measurement Mode   Mainstream  & side stream

EICO2 Range              0-100mmhg

Accuracy                     +/- 2 mmHg

Respiration Range       0-120 bpm
