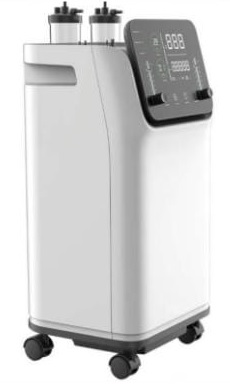

OXYGEN CONCENTRATOR 10 LTR ABM

Product Code: AVI-2303 Category:

General Specifications:

  • Maximum Recommended Flow: 10 L/min
  • Flow Range (at 7 kPa): 1–10 L/min
  • Flow Rate Change (at 7 kPa back pressure): <1 L/min
  • Oxygen Concentration: 93% ±3% at flow rates of 1–10 L/min
  • Output Pressure: 30–70 kPa
  • Compressor Safety Valve Pressure: 250 ± 50 kPa
  • Machine Noise: <60 dB(A)

Electrical & Physical Specifications:

  • Power Supply (Options):
    • AC220V/50Hz
    • AC220V/60Hz
    • AC110V/60Hz
    • AC110V/50Hz
  • Input Power: 550 VA
  • Net Weight: 29 kg
  • Dimensions: 364 × 385 × 731 mm

Operational Conditions:

  • Altitude: Works up to 1828 m without performance loss; efficiency drops below 90% above 1828 m (up to 4000 m)
  • Minimum Working Time: At least 30 minutes
  • Temperature of Oxygen Outlet: <46°C
  • Working Environment:
    • Ambient Temp: 10°C–40°C
    • Relative Humidity: <80%
    • Atmospheric Pressure: 860–1060 hPa
    • Pre-use Condition: Store >4 hrs in a normal environment if previously stored below 5°C

Safety & Protection:

  • Security Systems:
    • Overload
    • Loose connection line
    • Machine half
    • Power off
    • Alarm
  • Electrical Classification: Class II, Type B application part
  • Liquid Protection Rating: IPXO

Usage Recommendations:

  • Oxygen Tube Length: Max 15.2 meters, must not be collapsed
  • Service Character: Continuous operation
  • Device Type: Non-AP/APG (not for use with flammable anesthetic gases mixed with air or oxygen)
